150kw Cummins Power Electric Genset For Sale
Contacts:
+86 771 5
Website: https://www.dbdieselgenerator.com/cummins-genset/150kw-187.5kva-cummins-diesel-generator-set.html
visit: 131
Home / Electronics & Computers / Others Electronics / Assam / Jorhat

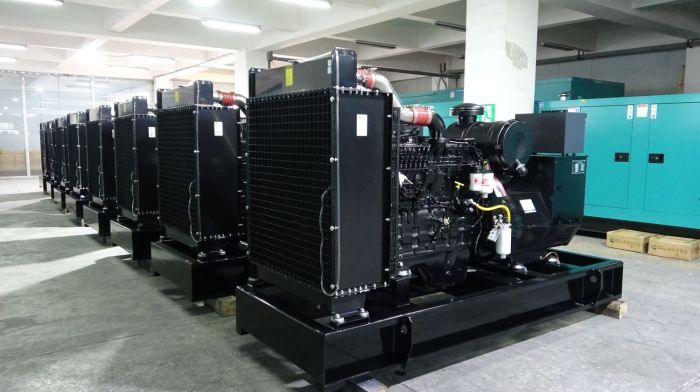

150KW 188KVA Diesel Generator Set Specifications
Genset Model DB-150GF
Prime Power 150kW 188kVA
Standby Power 165kW
206kVA
Rated Voltage(V) 400/230 (customizable)
Rated Current(A) 270
Power Factor 0.8
Frequency(Hz) 50
Speed(rpm) 1500
Phase: 3 Phase 4 Wire
Noise Level: 105dB At 7m ( Open Type Diesel Genset)
75dB At 7m(silent Type Diesel Genset)
Engine Specifications
Manufacturer Dongfeng Cummins Engine Co.,Ltd
Model 6CTA8.3-G2
Engine Output-prime 163kW
Engine Output-standby 180kW
Frequency: 50Hz
Speed: 1500rpm
Cylinders No. & Type: 6 Cylinders, Inline, 4 Stroke, Diesel Engine, Water-cooled
Aspiration: Turbocharged & Aftercooled
Bore*stroke 114*135mm
Displacement 8.3L
Compression Ratio 17.3:1
Governor Electronic Speed Governor
Starter Motor Voltage: 24V DC
Type Injection System: Direct Injection
Maximum Oil Temperature 121ºC
Minimum Required Lube System Capacity - Sump Plus Filters 27.6L
Cooling Way Water Radiator & Fan
Coolant Capacity - Engine Only 12.3L
Standard Thermostat 82-95ºC
Fuel Consumption-standby Power (100%) 48L/h
Fuel Consumption-prime Power (100%) 42L/h
Fuel Consumption-prime Power (75%) 31L/h
Fuel Consumption-prime Power (50%) 21L/h
Fuel Consumption-prime Power (25%) 13L/h
